APH-8001 8,000LB HEAVY DUTY CRADLE KIT

Ships free within the continental US.  We do not ship outside the US.

*All returns subject to 20% restock fee and original shipping cost covered by American Power Hoist will be deducted from the refund amount.

 *If you are unsure what length beams or cable length you need for your boatlift kit, please call us at 740-964-2035. We can also be easily reached on our Contact Us page in which can be found at the very top or very bottom of this page.

                            All Parts Hot Dipped Galvanized

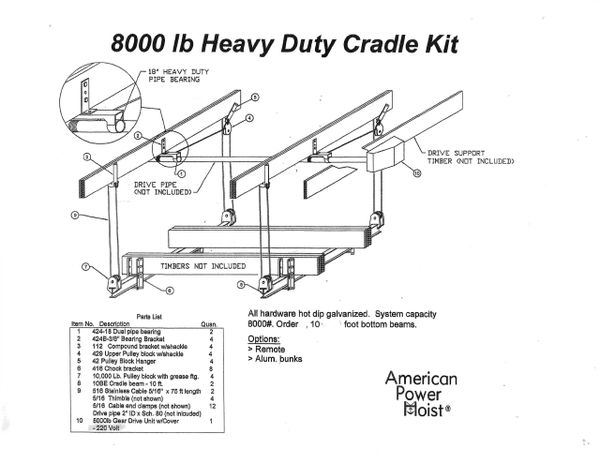

Kit Includes:

Item#      Qty.    Description

#1            2             424-18 Dual pipe bracket

#2            4             24B - 3/8" Bearing bracket

#3            4            112 Compound bracket

#4            4            429 Upper pulley block w/shackle

#5            4            42 Pulley block hanger

#6            8            416 Chock bracket

#7            4            10,000 LB Pulley block w/ grease fitting

#8            2            Cradle beam - 10 ft length

#9            2            5/16" GC Cable X 75' length

#10          1            CH5000lb Power hoist w/ cover

#11          4            5/16" Cable end clamps (not shown)

#12          4           5/16" Thimble (not shown)

#13          Drive Pipe 2" ID sch 80 (not included)
