APH-603 6,000 lb. Wood V-Pontoon Kit

Free Shipping!
Please specify the length of cable needed for this lift. You will receive two pieces of cable at this length. See description below with questions.

Ships free within the continental US.  We do not ship outside the US.

*All returns subject to 20% restock fee and original shipping cost covered by American Power Hoist will be deducted from the refund amount.

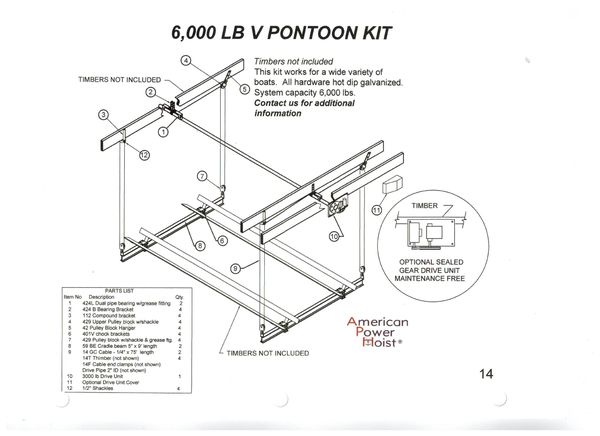

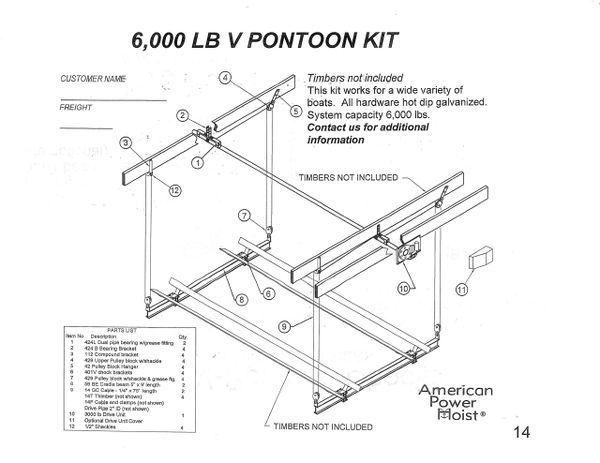

Parts List:

*If you are unsure what length beam or cable you need, please call us at 740-964-2035 or 1-866-876-0092. We can also be easily reached at our Contact Us page, which can be found at the very top or very bottom of this page.

Item No.              Description                                                              Quantity

   #1                     424L Dual Pipe Bearing w/Grease Fitting                    2

   #2                    424B  Bearing Bracket                                                    4

   #3                    112  Compound Bracket                                                 4

   #4                    429 Upper Pulley Block w/Shackle                               4

   #5                    42  Pulley Block Hanger                                                 4

   #6                    401V Chock Brackets                                                     4

   #7                    429 Pulley Block w/Shackles  w/Grease Fittings       4

   #8                    59BE Cradle Beam 5" x 9' Length                               2

   #9                    14 GC Cable - 1/4" x 75' length                                   2

   #10                   Drive Unit  To Meet Capacity                                       1

   #11                    Optional Drive Cover

   #12                   1/2" Shackle                                                                  4

                            Drive Pipe 2"ID  Not Included

                            14T Thimble  (Not Shown)                                           4

                            14F Cable End Clamps  (Not Shown)
