APH-702 7000LB Heavy Duty V Hull Cradle Kit
Ships free within the continental US. We do not ship outside the US.
*All returns subject to 20% restock fee and original shipping cost covered by American Power Hoist will be deducted from the refund amount.
*If you are unsure what length beams or cable length you need for your boatlift kit, please call us at 740-964-2035. We can also be easily reached on our Contact Us page in which can be found at the very top or very bottom of this page.
All Parts Hot Dipped Galvanized
Works Well for Wake Board & Pontoon Boats

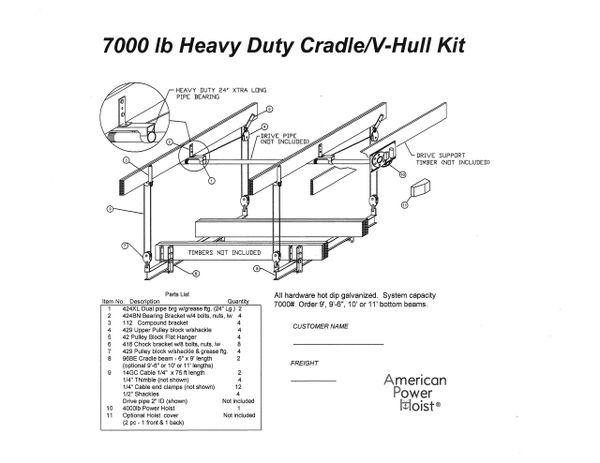

Kit Includes:
Item# Qty. Description
#1 2 242 XL Dual Pipe Bearing w/Grease Fitting (24" Lg)
#2 4 424BN Bearing Bracket w/4 Bolts, Nuts, LW
#3 4 112 Compound Bracket
#4 4 429 Upper Pulley Block w/Shackle
#5 8 416 Chock Bracket w/8 Bolts, nuts, LW
#6 4 429 Pulley Block w/Shackle & Grease Fitting
#7 2 96BE Cradle Beam - 6" X 9' length (optional 9'-6", 10'-6", 11'-6" lengths)
#8 2 14GC Cable - 1/4"X75 ft. Length (Galvanized)
#9 1 Power Hoist Gear Drives, rated 4,000 lbs
#10 1 Optional Hoist Cover (Not Included)
#11 1 Drive Pipe 2" ID (Shown, Not Included, Call if interested in purchasing)
1/4" Thimble (Not Shown)
1/4" Cable Stopper (Not Shown)
1/2" Shackles (Not Shown)
