APH-503 5,000 lb. Wood Cradle Kit

$2,021.00
Free Shipping!

*All returns subject to 20% restock fee and original shipping cost covered by American Power Hoist will be deducted from the refund amount.


*If you are unsure what size beams or cable needed for your lift, please call us at 740-964-2035 or 1-866-876-0092. We can also be easily contacted on our Contact Us page in which can be found at the very top or very bottom of this page.

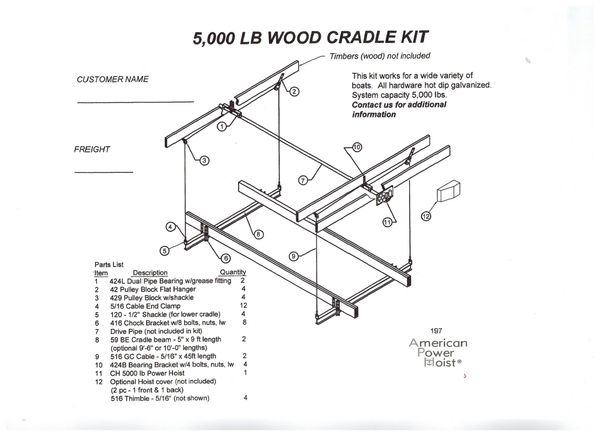

Kit Includes:

Item#      Qty.      Descriptions

 #1             2       424L Dual Pipe Bearings  w/grease fittings

 #2             4       42 Pulley Block Flat Hanger

 #3             4       429 Pulley Block w/shackle

 #4            12      5/16" Cable End Clamp

 #5             4       120 - 1/2" Shackles (for lower Cradle)

 #6             8       416 Chock Bracket w/8 bolts, nuts, lw

 #7                      Drive Pipe 2" ID  (not supplied)

 #8             2       59BE Cradle beam - 5" x 9 ft. length  (Optional 9'_6" or 10'-0")

 #9             2       516 GC Cable - 5/16" x 45 ft. length

 #10           4       424B Bearing Bracket w/4 bolts, nuts, lw

 #11           1       5000 lb. Power Hoist

 #12                   Optional Hoist Cover (not included)  (2 pc. 1 front & 1 Back)

                 4       516 Thimble - 5/16"  (not shown)
