Quality Boat Hoist Power Drives, Lifts, Motors, Parts and Accessories

APH-501 Wood Pontoon Floor Lift Kit

Free Shipping!
Please specify the length of cable needed for your boathouse. You will receive two pieces of cable at the length provided. See description with questions.

*All returns subject to 20% restock fee and original shipping cost covered by American Power Hoist will be deducted from the refund amount.

*If you have any questions regarding the length you need for your beams or cable, please call us at 740-964-2035 or 1-866-876-0092. We can also be easily reached on our Contact Us page in which can be found at the very top or the very bottom of this page.

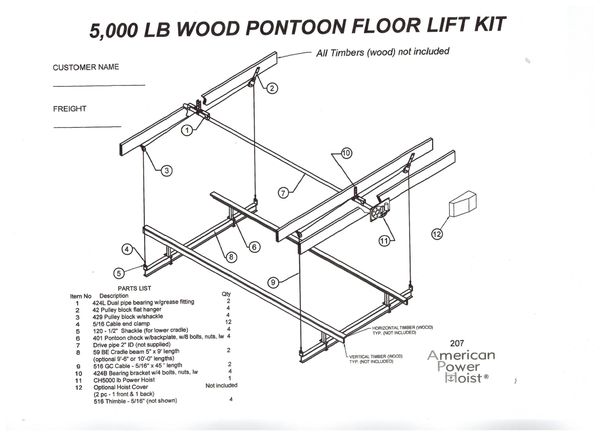

Kit Includes:

Item: Quantity: Description:

 #4          12             5/16" Cable End Clamps

 #5           4              120 -1/2" shackle  (for lower cradle)

 #6           4              401 Pontoon Chocks w/backplate, w/8 bolts, nuts, lw

 #7                           Drive Pipe 2" ID (not supplied)

 #8           2              59 BE Cradle Beam 5" x 9'  (Optional 9'-6" or 10'-0"lengths)

 #9           2              516 GC Cable - 5/15" x 45 ft length

 #10         4              424B Bearing Bracket w/4 bolts, nuts, lw

 #11         1               5000 lb. Power Hoist

 #12                         Optional Hoist Cover  (2 pc- 1 Front & 1 Back (not included)

                4              516 Thimble - 5/16"  (not shown)
