4,000 lb. Wood Mount V-Pontoon Kit **Please call before ordering**

*All returns subject to 20% restock fee and original shipping cost covered by American Power Hoist will be deducted from the refund amount.

*Please call before ordering: 740-964-2035 or 1-866-876-0092. We can also be easily reached on our Contact Us page found at the very top or very bottom of this page.

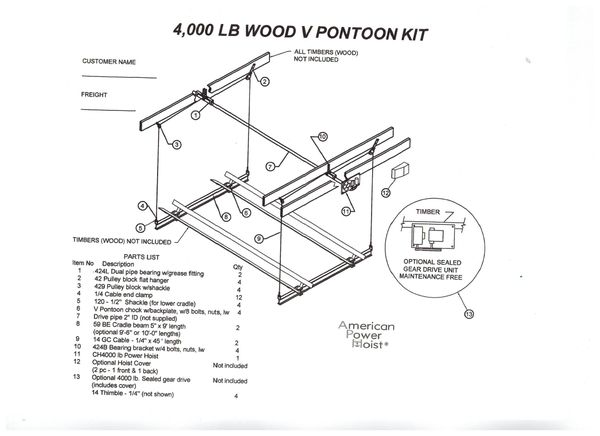

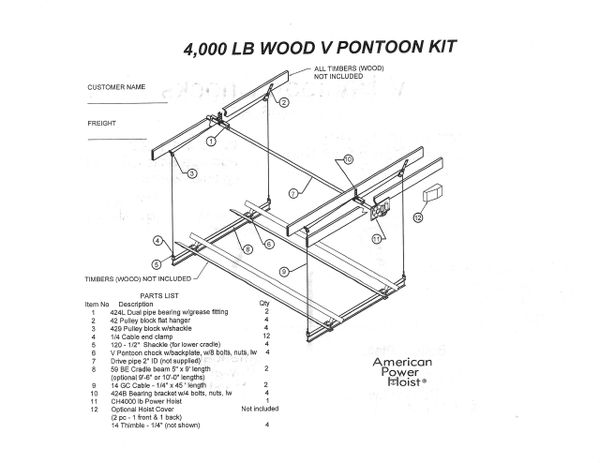

   Kit Includes:

Item#     Qty.         Description

 #1           2            424L Dual Pipe Bearing w/grease fittings

 #2           4            42 Pulley Block Flat Hanger

 #3           4            429 Pulley Block w/shackle

 #4          12          1/4" Cable End Clamps

 #5           4           120 - 1/2" Shackle (for lower cradle)

 #6           4           V Pontoon chock w/backplate, w/8 bolts, nuts, lw

 #7                        Drive Pipe 2" ID (not supplied)

 #8           2           59 BE Cradle Beam 5" x 9'  (Optional 9'-6"  or  10'-0" lengths

 #9           2           14 GC Cable - 1/4" x 45' length

 #10         4           424B Bearing bracket w/4 bolts,nuts, lw

 #11         1           CH 4000 lb. Power Hoist

 #12                      Optional Hoist Cover (2pc. 1 front - 1 Back)  (not included)

 #13                      Optional 4000 lb Sealed gear drive - (includes cover)  (not included)

                4           14 Thimble - 1/4" (not shown)
