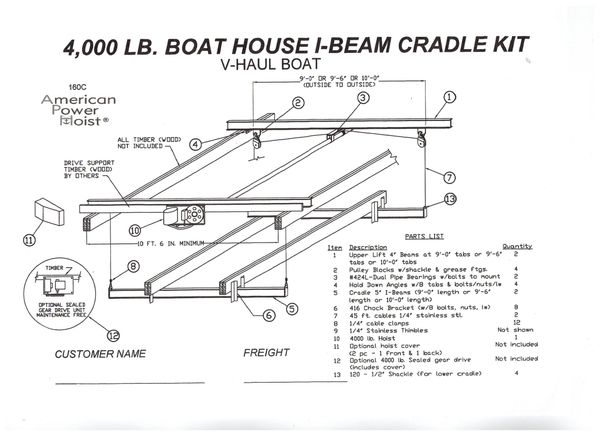

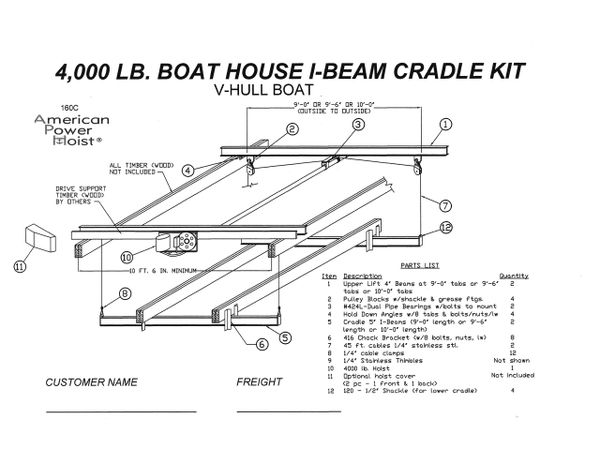

APH-403 - 4,000 lb. Boat House I-Beam Cradle Kit (for V-Hull Boat)

*If you are unsure what length beams or cable you need for your boat lift, please call us at 1-866-876-0092 or 740-964-2035. We can also be easily reached on our Contact Us page in which can be found at the very top or very bottom of this page.

                      Kit Includes:

Item#     Qty.     Description

 #1           2        Upper Lift 4" Beams (Select Length)

 #2           4        Pulley Blocks w/shackles & grease fittings

 #3           2        #424L Dual Pipe Bearings w/bolts to mount

 #4           4        Hold Down Angles w/8 tabs & bolts/nuts/lock washers

 #5           5        Cradle 5"  I-Beams (Select Length)

 #6           8        416 Chock Bracket (w/8 bolts, nuts, lock washers

 #7           2        45 ft. cables 1/4" Stainless Steel

 #8         12        1/4" Cable Clamps

 #9                     1/4" Stainless Thimbles  (not shown)

 #10        1         4000 lb. Hoist

 #11                   Optional Hoist Cover  (not included)  (2pc. 1 Front & 1 Back)

 #12                   Optional 4000 lb. Sealed Gear Drive (included Cover) (Not included, add on option)

 #13        4         120 - 1/2" Shackle (for lower cradle)
