4,000 lb. Wood Mount Pontoon Floor Lift Kit **Please call before ordering 740-964-2035**

*All returns subject to 20% restock fee and original shipping cost covered by American Power Hoist will be deducted from the refund amount.

*Please call before ordering: 740-964-2035 or 1-86-876-0092. We can also be easily reached on our Contact Us page found at the very top or very bottom of this page.

*All parts are hot dipped galvanized.

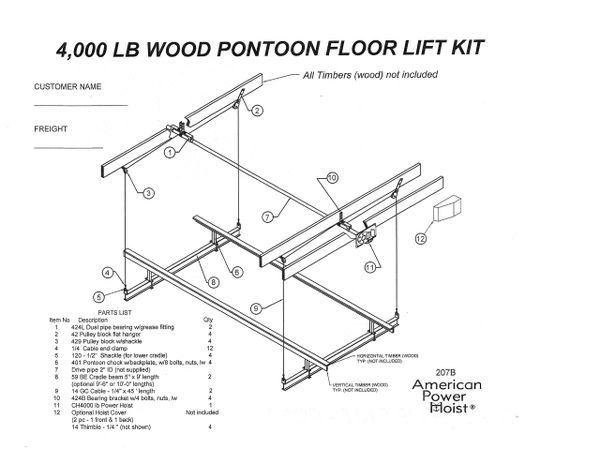

 Kit Includes:

Item        Qty.             Description

 #1            2                424L Duel pipe bearings w/grease fittings

 #2            4                42 Pulley block flat hanger

 #3            4                429 Pulley block w/shackles

 #4           12               1/4" Cable end clamps

 #5            4                120 -12 x 9'" Shackles

 #6            4                401 Pontoon chock w/backplate, w/8 bolts, nuts, lw

 #7                              Drive Pipe 2" ID (not supplied) #8

                                   (Optional 9'-6" or 10' -0" lengths)

 #8            2                59BE Cradle beam 5" x 9' length

 #9            2                14 GC Cable - 1/4" x 45" length

 #10          4                424B Bearing Bracket w/4 bolts, nuts, lw

 #11          1                 CH4000 lb. Power Hoist

 #12                            Optional Hoist Cover    (Not Included)

                                   (2pc - 1 front & 1 Back

 #13                            Optional 4000 lb. Sealed gear Drive     (Not Included)

                                   (Includes Cover)

                 4                14 Thimble - 1/4" (not Shown)
