APH-303 3,000 lb. Wood Pontoon Floor Lift Kit (9 Ft Beams) *Please call before ordering 740-964-2035*

*All returns subject to 20% restock fee and original shipping cost covered by American Power Hoist will be deducted from the refund amount.

*Please call before ordering: 1-866-876-0092 or  740-964-2035. We can also be easily reached on our Contact Us page found at the very top or very bottom of this page.

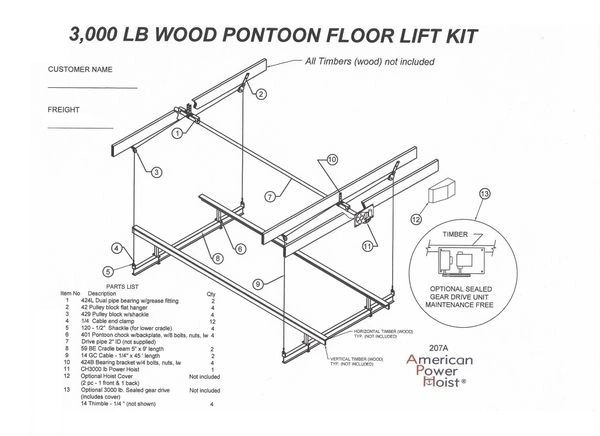

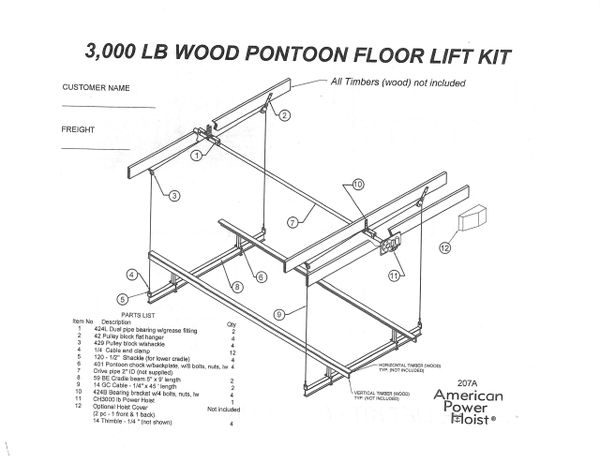

        Kit Includes:

Item No.                  Qty.                    Description

     1.                         2                       424L  Dual pipe bearings w/grease fittings

     2.                         4                       42  Pulley block flat hanger

     3.                         4                       429 Pulley block w/shackles

     4.                         12                     1/4 Cable end Clamp

     5.                         4                       120 - 1/2" Shackles (for lower cradle)

     6.                         4                       401 Pontoon chock w/back plate, w/8 bolts, nuts

     7.                                                  Drive pipe 2" ID (not supplied)

     8.                         2                       59 BE Cradle Beam 5" x 9" length

     9.                         2                       14 GC Cable - 1/4" X 45' length

   10.                         4                       424B Bearing bracket w/4 bolts, nuts,hw

   11.                         1                       CH3000 lb. Power Hoist

   12.                 Not Included           Optional Hoist cover  (2 piece, 1 front & 1 Back)

   13.                 Not included           Optional 3000 lb. Sealed gear drive

                                                            (in place of standard hoist)

   14.                        4                        Thimble - 1/4"  (not shown)
