APH-302 - 3,000 lb. Wood V-Pontoon Kit ( 9 Ft Beams) *Please call before ordering 740-964-2035*

Ships free within the continental US.  We do not ship outside the US.

*All returns subject to 20% restock fee and original shipping cost covered by American Power Hoist will be deducted from the refund amount.

*Please call before ordering: 1-866-876-0092 or 740-964-2035. We can also be easily reached on our Contact Us page found at the very top or very bottom of this page.

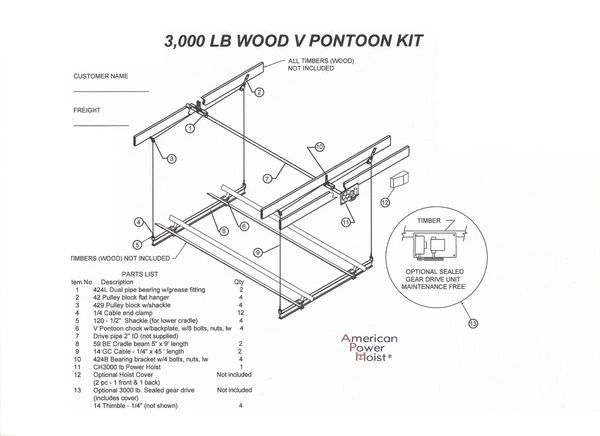

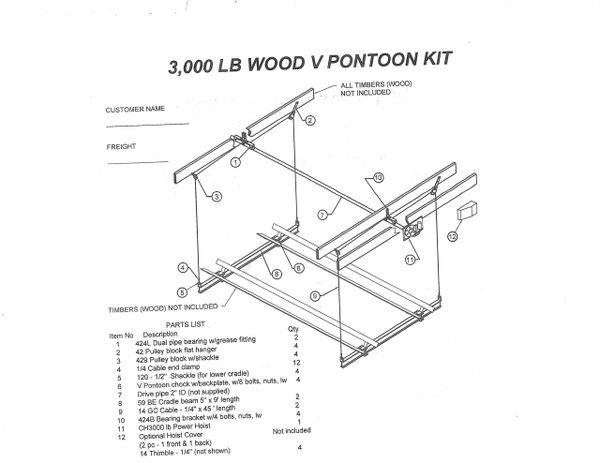

          Kit Includes:

Item No.          Description                                                              Quantity

   #1                 424C Dual Pipe Bearing w/Grease Fitting                    2

   #2                 42 Pulley Block Hanger                                                 4

   #3                429 Pulley Block w/Shackle                                          4

   #4                1/4" Cable End Clamp                                                  12

   #5                120  1/2" Shackle                                                           4

   #6                V Pontoon Chock                                                          4

   #7                Drive Pipe 2" ID (Not Included

   #8                59 BE Cradle Beam  5" x 9'                                          2

   #9                14 GC Cable   1/4" x 45' Length                                    2

   #10              424B Bearing Bracket                                                   4

   #11               CH3000 lb. Power Unit                                                 1

   #12              Optional Drive Unit Cover

                      Thimble  1/4" (Not Shown)                                              4
