APH-102 - 5,000 Lb. SIDE DRIVE CRADLE KIT *Please call before ordering 740-964-2035*

Ships free within the continental US.  We do not ship outside the US.

Please call before ordering 740-964-2035.  Or we can also be reached by using our Contact Us option found at the bottom of web page.

*All returns subject to 20% restock fee and original shipping cost covered by American Power Hoist will be deducted from the refund amount.

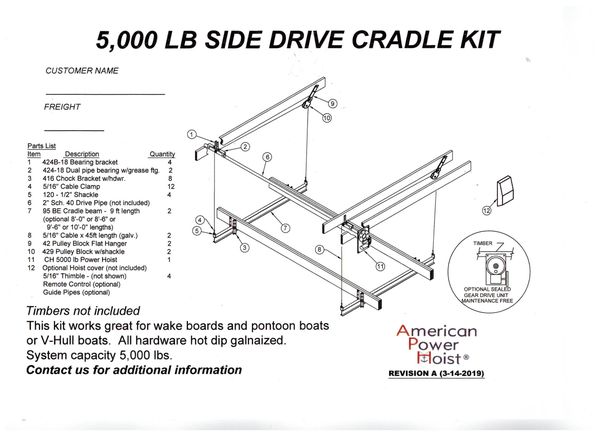

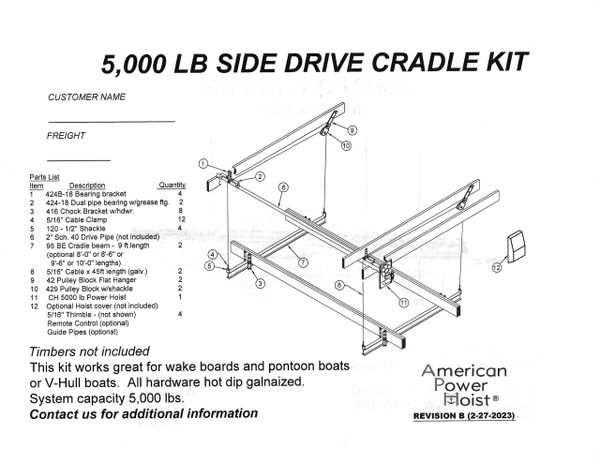

Parts List

Item        Description                                    Quantity

1.             424B-18 Bearing Bracket                               4
2.             424-18 Dual Pipe Bearing                              2

3.             416 Chock Bracket w/hdwr.                            8

4.             5/16" Cable Clamp                                        12

5.             120  - 1/2" Shackle                                         4

6.             2" Sch. 40 Drive Pipe  (Not Included)

7.             95 BE Cradle Beam - 9 ft Length                   2

8.             5/16" Cable X 45 ft. Length                            2

9.             42 Pulley Block Flat Hanger                           2

10.           429 Pulley Block w/shackle                            2

11.           CH 5000 lb. Power Hoist                                 1

12.           Optional Hoist Cover (Not Included)

                5/6th Thimble - (Not shown)                           4

                 Remote Control (Optional)

  Timbers not included

This Kit works great for wake boards and pontoon boats or V-Hull Boats

System capacity 5,000 lbs.

Contact us for additional information
