APH-100 - 3,000 LB. SIDE DRIVE CRADLE KIT

$1,665.00
Free Shipping!
Please specify the length of cable needed for your boat lift. You will receive 2 pieces of the cable at the length you provide. See description with questions.

*All returns subject to 20% restock fee and original shipping cost covered by American Power Hoist will be deducted from the refund amount.

White Shark Gear Drive is maintenance free, meaning it does not require additional greasing. This gear drive lifts 30% faster than the traditional model lift.

*This kit only uses 9 foot beams. If you are unsure what length of cable you need, please call us at 740-964-2035 or 1-866-876-0092. You can also easily reach us through our Contact Us page that can be found at the very top of this page as well as the very bottom of this page.

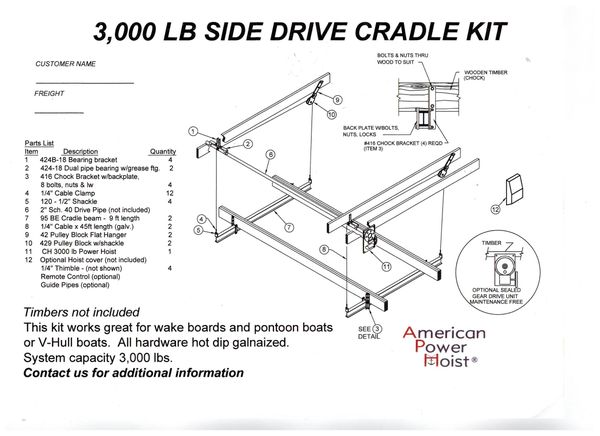

PARTS LIST

ITEM:     DESCRIPTION                                                              QUANTITY

1.             424B-18 BEARING BRACKET                                                         4
2.            424-18 DUAL PIPE BEARING w/fitting                                               2
3.            416 CHOCK BRACKET                                                                      8
                8 BOLTS, NUTS  & LOCK WASHERS                                              4
4.             1/4" CABLE CLAMPS                                                                      12
5.             120 - 1/2" SHACKLE                                                                         4
6.              2" SCH. 40 DRIVE PIPE (NOT INCLUDED)
7.              95 BE CRADLE BEAM - 9 FT. LENGTH   (GALV)                           2
8.              1/4" CABLE X 45FT. LENGTH (GALV)                                            2
9.              42 PULLEY BLOCK FLAT HANGER                                               2
10.            429 PULLEY BLOCK w/SHACKLE                                                  2
11.            CH3000 LB. POWER HOIST                                                            1
12.            OPTIONAL HOIST COVER (NOT INCLUDED)
                 1/4" THIMBLE  (NOT SHOWN)                                                        4
                 REMOTE CONTROL (OPTIONAL)
                 GUIDE PIPES (OPTIONAL)

*TIMBERS NOT INCLUDED

THIS KIT WORKS GREAT FOR WAKE BOARDS AND PONTOON BOATS OR V-HULL BOATS.  ALL PARTS HOT DIP GALVANIZED.

SYSTEM CAPACITY 3,000 LBS.

CONTACT US FOR ADDITIONAL INFORMATION.
