APH-602 6,000 lb. Wood Pontoon Floor Lift Kit

Ships free within the continental US.  We do not ship outside the US.

*All returns subject to 20% restock fee and original shipping cost covered by American Power Hoist will be deducted from the refund amount.

*If you are unsure what length of beams or cable length you need for your boat lift, please call us at 740-964-2035 or 1-866-876-0092. We can also be easily reached on our Contact Us page in which can be found at the very top or very bottom of this page.

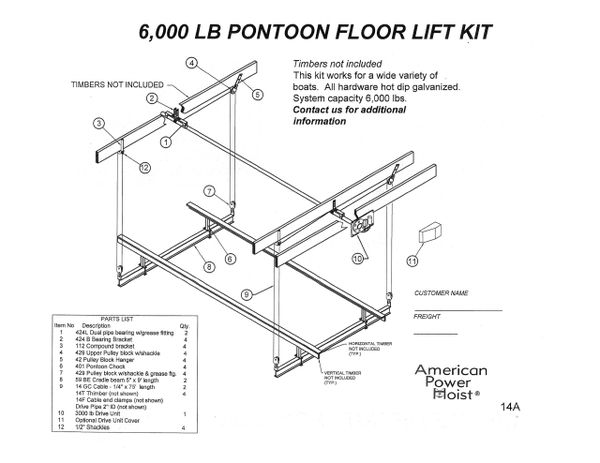

Kit Includes:

Item      Description                                   Qty.

#1         424L  Dual Pipe Bearing                 2

#2         424B  B Bearings Bracket              4

#3         112     Compound Bracket             4

#4         429     Upper Pulley Block             4

#5         42       Pulley Block Hanger           4

#6         401     Pontoon Chock                   4

#7         429     Pulley Block w/Shackles    4

#8         59       BE Engineer Cradle Beam 2

#9         14       GC Cable 1/4" x 75' Cable   2

             14T     Thimble (Not Shown)         4

             14F      Cable End Clamps

                         Drive Pipe 2" 2"ID (Not Included)

#10                   Drive Unit to Match 6,000 lb Capacity

#11                   Optional Drive Unit Cover

#12                   1/2" shackles                      4
