*CALL BEFORE ORDERING* APH-023 7,000 lb - 10,000 lb. Steel Mount Cradle Kit Dual Drive

Ships free within the continental US.  We do not ship outside the US.

*All returns subject to 20% restock fee and original shipping cost covered by American Power Hoist will be deducted from the refund amount.

                      All Parts are Hot Dipped Galvanized

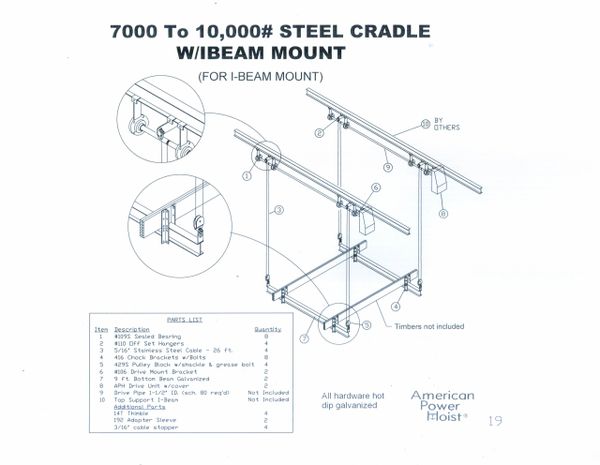

Item #         Qty.        Description

#1.                8            #109S    Sealed Bearing

#2.                4            #110      Off Set Hangers

#3.                4            5/16       Stainless Steel Cable  - 26 Ft.

#4.                8            416        Chock Brackets w/bolts

#5                 4            429S      Pulley Block  w/Shackle & Grease Bolt

#6                 2            #106      Drive Mount Bracket

#7                 2            9 Ft.      Bottom Beam Galvanized

#8                 2            APH      Drive Unit Gear Drive Matched to Lift Capacity w/Covers

#9                               Drive Pipe 1-1/2" I.D.  (Sch. 80 Required, Not Included)

#10                            Top  Support Engineered I-Beam

                                  Additional Parts Not Shown

                    4            Thimble

                    2            192 Adapter Sleeve

                    4            3/16' Cable Stopper
