APH-601 - 6,000 lb. Dual Drive Wood Cradle Kit

Ships free within the continental US.  We do not ship outside the US.

*All returns subject to 20% restock fee and original shipping cost covered by American Power Hoist will be deducted from the refund amount.

 *If you are unsure what length beams or cable length you need for your boatlift kit, please call us at 740-964-2035. We can also be easily reached on our Contact Us page in which can be found at the very top or very bottom of this page.

                            All Parts Hot Dipped Galvanized

            Works Well for Wake Board & Pontoon Boats

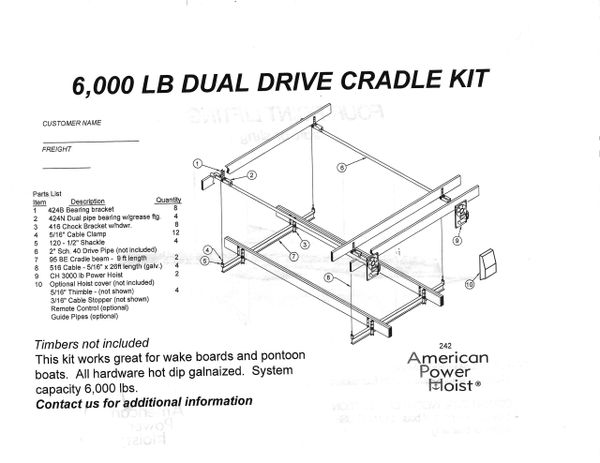

Kit Includes:

Item#      Qty.    Description

#1            8             424B    Bearing bracket

#2            4             424N    Dual Pipe Bearing w/Grease Fitting

#3            8             416      Chock Bracket w/hardware

#4           12            5/16" Cable Clamps

#5            4             120      1/2"Shackle

#6                           2"  Sch. 40 Drive Pipe (Not Included, call for pricing)

#7            2             95BE    Cradle Beam  - 9 ft.

#8                           516       Cable - 5/16' x 26 ft. Length (Galvanized)

#9            2             Power Hoist Gear Drives, rated 3,000 lbs each

#10          1             Optional Hoist Cover (Not Included)

                               5/16"  Thimble (Not Shown)

                               3/16"  Cable Stopper  (Not Shown)
